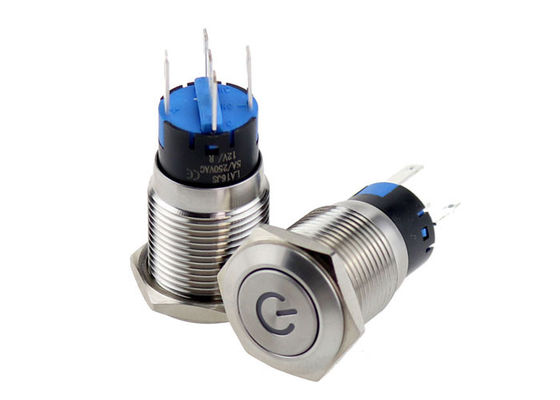

IK08 Protection 16mm 1NO 1NO 5 Pin Latch Type Push Button

Negotiable
MOQ
Negotiable
Price
IK08 Protection 16mm 1NO 1NO 5 Pin Latch Type Push Button
Features Gallery Product Description Request A Quote
Features
Specifications
Color: Silver
Body Material: Stainless Steel / Nickel Plated Brass / Aluminum
Operation Type: Latching
Operating Temperature: -20℃~+55℃
Head Shape: Flat Round Head Or High Round Head
Warranty Period: Two Year
High Light:

5 Pin latch type push button

,

16mm latch type push button

,

IK08 16mm push button switch

Basic Infomation
Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: LA16 Series
Payment & Shipping Terms
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Product Description

Stainless Steel or Aluminum Latching Push Button Switch 16mm 5pin Termlmal 1NO 1NO Car switches



Product Description

- IP Degree: IP67, IK08. Waterproof Protection Can be Used in Wet or Dusty Environment. 6 means Totally protected against dust,7 means Protected against the effects of temporary immersion between 15cm and 1m.
- Outside color: 1. Stainless steel 2. Nickle plated brass 3. Gold plated brasss 4. Black Zin-Al.
- Its Anti-vandal body allows it to be used in a variety of environments.The metal makes it more durable, resistant to corrosion and has a longer life.



Product Specification



  Model Number   LA16 Series
  Mounting Hole   16mm
  Max.Switch Rating   Ith : 5A Ui : 250V AC
  Material

  Body Material:

  Stainless Steel/Nickel Plated Brass/Black Oxidized Aluminum

  Button Material:

  Stainless Steel/Black Oxidized Aluminum

  Contact Material: Silver Alloy
  Base Material: PBT
  The Front Shape   High Round Head / Flat Round Head
  Terminal Type   Pin Termlmal
  Switch Operation   Latching or Momentary
  Contact Configuration   1NO + 1NC or 2NO + 2NC
  Mounting panel thickness   1-10 mm
  Operation Distance   About 2.8 mm
  Protection Level   IP67
  Operating Temp   -20℃~+55℃



Size Drawing



IK08 Protection 16mm 1NO 1NO 5 Pin Latch Type Push Button 0

IK08 Protection 16mm 1NO 1NO 5 Pin Latch Type Push Button 1
