250VAC Waterproof 16mm Illuminated LED Latching Push Button Switch

Negotiable
MOQ
Negotiable
Price
250VAC  Waterproof 16mm Illuminated  LED Latching Push Button Switch
Features Gallery Product Description Request A Quote
Features
Specifications
LED Color: Red,Green,Yellow,Orange,Blue,White,Purple
Led Voltage: 3V 6V 12V 24V 36V 110V 220V
Protection Level: IP 67
Mechanical Life: More Than1,000,000 Cycles
Mounting Panel Thickness: 1-10 Mm
Operation Distance: About 2 .8 Mm
High Light:

LED Latching Push Button Switch

,

250VAC Latching Push Button Switch

,

250VAC 16mm illuminated pushbutton

Basic Infomation
Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: LA16 illuminated Series
Payment & Shipping Terms
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Product Description

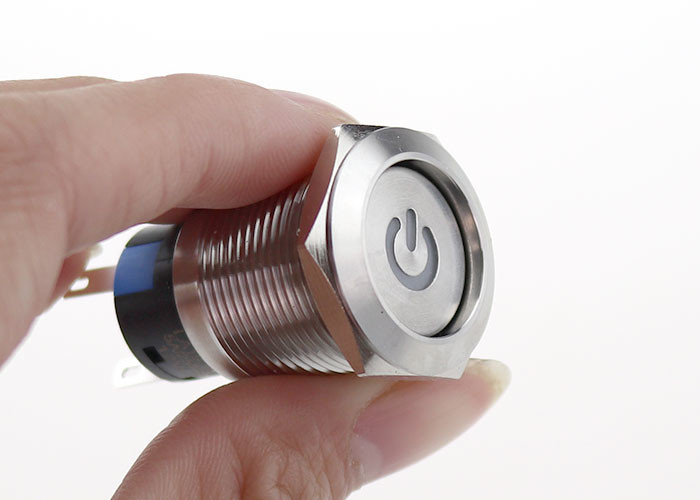

16mm Illuminated Latching Push Button Switch Ring Power logo design LED light Waterproof Pushbutton



Product Description

- Outside color: 1. Stainless steel 2. Nickle plated brass 3. Gold plated brasss 4. Black Zin-Al
- It has an operating life of more than 500,000 cycles,You don't have to worry about replacing them often,It's a very reliable product.
- It is meets ROHS Requirement ,passed the CE certification,which is a kind of push button switch that can be used safely.



Product Specification



- Led Color : Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing Can be customized.

- Led Voltage : 3V 6V 12V 24V 36V 110V 220V for choose.

- Led Type : Ring , Dot , Power , Angle eye , Trumpet etc. Logo customization are available.



  Model Number   LA16 illuminated Series
  Mounting Hole   16mm
  Max.Switch Rating   Ith : 5A Ui : 250V AC
  Material

  Body Material:

  Stainless Steel/Nickel Plated Brass/Black Oxidized Aluminum

  Button Material:

  Stainless Steel/Black Oxidized Aluminum

  Contact Material: Silver Alloy
  Base Material: PBT
  The Front Shape   Flat Round Head
  Terminal Type   Pin Termlmal
  Switch Operation   Latching or Momentary
  Contact Configuration   1NO + 1NC or 2NO + 2NC
  Mounting panel thickness   1-10 mm
  Operation Distance   About 2.8 mm
  Protection Level   IP67
  Operating Temp   -20℃~+55℃



250VAC  Waterproof 16mm Illuminated  LED Latching Push Button Switch 0
