16mm IP67 Anti Vandal Push Button Switch With Harness Plug

16mm IP67 Anti Vandal Push Button Switch With Harness Plug
Features Gallery Product Description Request A Quote
Terminal Material: Silver Alloy
Panel Mounting: 16mm
Application: Universal
Contact Configuration: 1NO 1NC
Mounting Panel Thickness: 1-10mm
Operation Distance: 2.8mm
High Light:

IP67 Anti Vandal Push Button Switch


IP67 16mm momentary push button


16mm Anti Vandal Push Button Switch

Basic Infomation
Place of Origin: China
Brand Name: Yueshun
Certification: CE RoHS
Model Number: LA16F-11YSC
Payment & Shipping Terms
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Product Description

Waterproof IP67 Anti Vandal Push Button Switch With Harness plug ,Momentary or Latching push buttons


The anti vandal switch offer attractive, robust and durable switch, available with different bushing diameters(12 ~25mm), actuator shapes, available with LED illumination and engraving, Protection IP65 / IK09. This anti-vandal switch features a easy clean, aesthetic look for high end products. Our anti-vandal switches are popular for use in kiosk applications, ticket dispensers and industrial-type applications. Also comes in black anodized finish.


  • Variety of color
  • Momentary/ Alternated
  • Long life, high reliability
  • Anti-Vandal IK09/ Sealed IP65
  • Illuminated and Non-Illuminated




  - Power LOGO LED illuminated Metal push button switch ;

  - Suitable for 19MM mounting panel ;

  - Stainless Steel material ;

  - Waterproof and can be used outdoors ;

  - The Pigtail socket is tailor-made for it and can be installed without welding.





Product Parameters
  Model  LA16F-11YSC
  Dia.   16mm
  Max.Switch Rating   Ith : 5A Ui : 250V AC
 Outshell/Press Key   Stainless Steel
  Base material   PBT
  Terminal Type   Pin Termlmal (2.8*0.5mm)
  Mounting panel thickness   1-10 mm
  Ambient Temperature   -20℃~+55℃
  Switch Operation   Momentary or Latching
  Package   Push button switch + Pigtail socket
Led Parameters
  Led Symbol   Power Symbol / Customized
  Led Color   Red,Green,Yellow,Orange,Blue,White,Purple
  Rated Voltage   3V 6V 12V 24V 36V 110V 220V 360V for choose.
  Reference Life   More than 40,000 hours


About us:


    Our company is a professional company engaged in the design, development, production, sales and service of button switch, focusing on the innovation and quality of button switch.

    The leading products are 8mm, 10mm, 12mm, 16mm, 19mm, 22mm, 25mm, 28mm, 30mm, 40mm series button switches and indicators.The types of luminescence with lights are: ring luminescence, single point luminescence, power symbol luminescence, ring home power symbol luminescence, other customized luminescence lights, open type: self-locking, self-duplexing.Waterproof grade can be large leather IP67 class.The highest explosion-proof performance can reach IK10 level.

    Our products are affordable, quality assurance, is your best choice.

    The company can develop and customize products according to customer requirements.

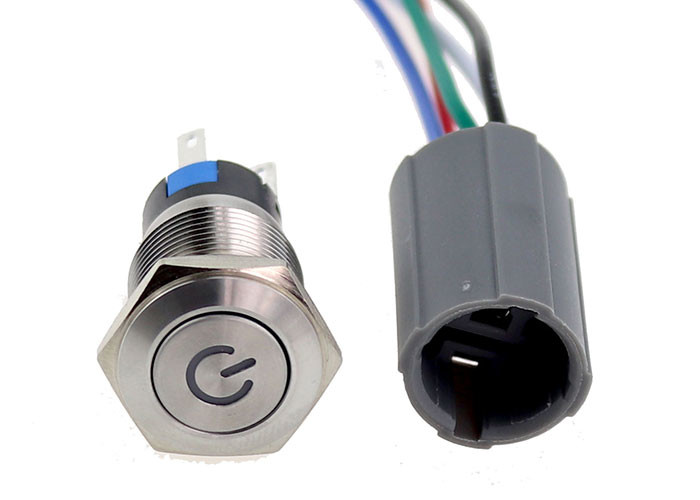

16mm IP67 Anti Vandal Push Button Switch With Harness Plug 0
