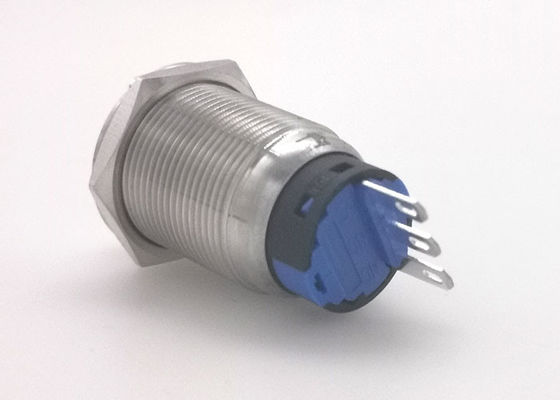

Stainless Steel Anti Vandal Push Button Switch , Metal Rotary Push Button Switch

Negotiable
MOQ
Negotiable
Price
Stainless Steel Anti Vandal Push Button Switch , Metal Rotary Push Button Switch
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Metal Rotary Switch
Product Function: Latching Push Button Switch
Protection Level: IP 67
Mechanical Life: More Than1,000,000 Cycles
Operation Type: Latching Maintained
Operating Temperature: -20℃~+55℃
High Light:

car horn push button switch

,

pc push button switch

Basic Infomation
Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: LA19F-11X/S
Payment & Shipping Terms
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Product Description

2 position Rotary switch Anti Vandal Push Button Switch Stainless Steel Latching selector switch



Product Description

- Rotary Latching pushbutton switches are one ofthe most popular switches, which is used in a variours of appliances, such as PC, security system, Power control, door-bell switch, etc
- The Rotary switch are High-grade appearance and nice touch feeling, which is made of 304 stainless steel. If you need other materials please feel free to contact us.
- It is a Metal Rotary switch, Two position and Three position are are available





Product Specification

  Model Number   LA19F-11X/S
  Mounting Hole   19mm 22mm  are available
  Max.Switch Rating   Ith : 5A Ui : 250V AC
  Material   Body Material: Stainless Steel / Aluminum
  Button Material: Stainless Steel /Aluminum
  Contact Material: Silver Alloy
  Base Material: PBT
  Position   Two Position or  Three Position
  Terminal Type   Pin Termlmal ( 2.5 * 0.5 mm )
  Switch Operation   Latching
  Contact Configuration   1NO + 1NC or 2NO + 2NC are available
  Mounting panel thickness   1-10 mm
  Protection Level   IP67
  Operating Temp   -20℃~+55℃



Size
