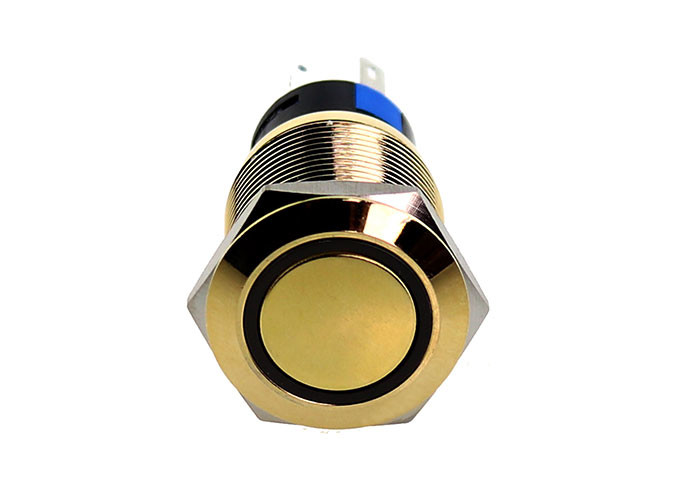

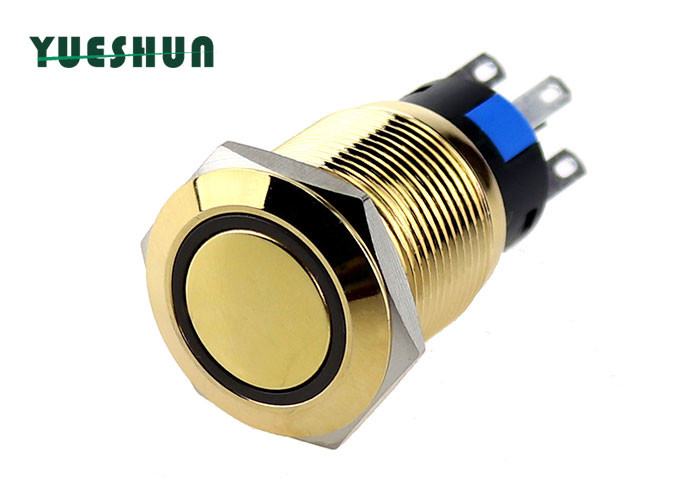

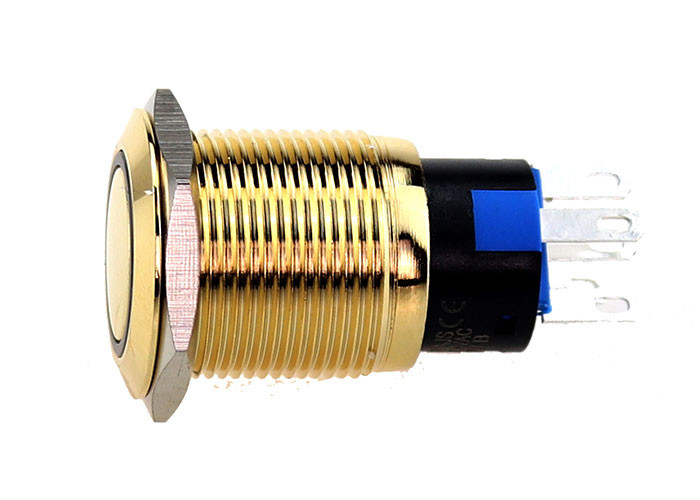

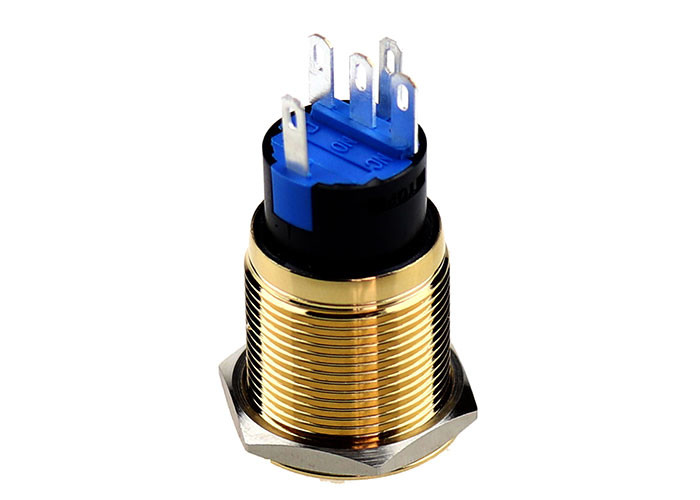

Gold Plated Brass Push Button Switch Illuminated Flat Round Head Easy Assemble

Negotiable
MOQ
Negotiable
Price
Gold Plated Brass Push Button Switch Illuminated Flat Round Head Easy Assemble
Features Gallery Product Description Request A Quote
Features
Specifications
Max. Current: 5A
Max. Voltage: 250V AC
Product Name: Metal Illuminated Push Button Switch
Product Function: Momentary Push Button Switch
Color: Gold
Body Material: Gold Plated Brass
High Light:

car horn push button switch

,

push button doorbell switch

Basic Infomation
Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: LA19F-11E/G
Payment & Shipping Terms
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Product Description

19mm Gold Plated Brass Anti Vandal Push Button Switch Illuminated Metal Momentary push buton switch



Product Description

- High-quality push button switches are based on a solid-state output, we ensure you a very long life expectancy (more than 50 millions cycles).The flat actuator is completely closed, preventing the water and the dusts, perfect for surface cleaning required in the food-processing and medical industries.
- The product is made of Gold plated brass, which is durable and can be used in outdoor environment; Other materials such as Nickel Plated Brass, stainless steel, Zn-Al Alloy.
-  Latching type power buttons : Push it–on, push it again-off;

- Momentary type power buttons: Push it- on, release - the actuator surface spring to original position.



Product Specification

  Model Number   LA19F-11E/G
  Mounting Hole   19mm
  Max.Switch Rating   Ith : 5A Ui : 250V AC
  Material   Body Material : Gold Plated Brass
  Button Material :Gold Plated Brass
  Contact Material : Silver Alloy
  Base Material : PBT
  The Front Shape   Flat Round Head
  Terminal Type   Pin Termlmal( 2.8 * 0.5 MM )
  Switch Operation   Momentary or Latching are available
  Contact Configuration   1NO + 1NC or 2NO + 2NC
  Mounting panel thickness   1-10 mm
  Operation Distance   About 3.1 mm
  LED Parameters   Led Type : Ring  Symbol
  LED Color :
  Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing all Can be customized.
  Led Voltage:
3V 6V 12V 24V 36V 110V 220V 360V for choose.
  LED Life : More than 40,000 hours
  Protection Level   IP67
  Operating Temp

  -20℃~+55℃
