Home /Products/Stainless Steel Push Button Switch/12mm LED Illuminated Push Button Stainless Steel With CE RoHS Certication

12mm LED Illuminated Push Button Stainless Steel With CE RoHS Certication

Negotiable
MOQ
Negotiable
Price
12mm LED Illuminated Push Button Stainless Steel With CE RoHS Certication
Features Gallery Product Description Request A Quote
Features
Specifications
Color: Silver
Body Material: Stainless Steel
Terminal Material: Silver Alloy
Panel Mounting: 12 MM
Weigh: 30g
Terminal Type: Pin Termlmal
High Light:

ss push button switch

,

stainless push button switch
Basic Infomation
Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: LA12 Series
Payment & Shipping Terms
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Product Description

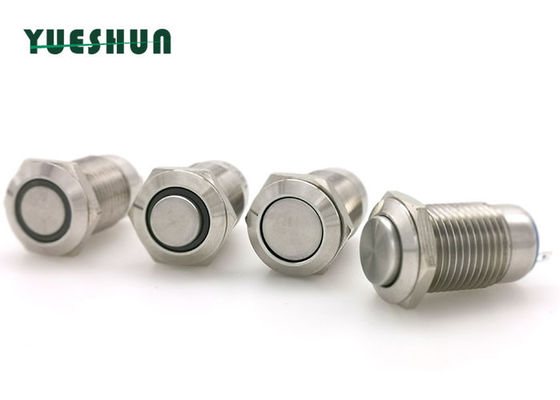

12mm LED Illuminated Stainless Steel Push Button Switch anti-vandal latching push button



Product Description

- The product is made of stainless steel, which is durable and can be used in outdoor environment; Other materials such as Nickel Plated Brass, Gold plated brass, Zn-Al Alloy.
- Real color may slightly different from pictures due to many factors such as computer screen's resolution, brightness, contrast etc. Hope understanding.



Product Specification



Model Number LA12 Series
Mounting Hole 12MM
Max.Switch Rating Ith:2A Ui:36V DC
Material Body Material: Stainless Steel
Button Material: Stainless Steel
Contact Material: Silver Alloy
Base Material: PBT
The Front Shape Flat Round Head or High Round Head
Terminal Type Pin Termlmal
Switch Operation Momentary or Latching
Contact Configuration Normal Open
Mounting panel thickness 1-6 mm
Operation Distance About 2.0mm
Protection Level IP67
Operating Temp -20℃～+55℃
Tag:

stainless push button switch

push button stainless steel

ss push button switch
