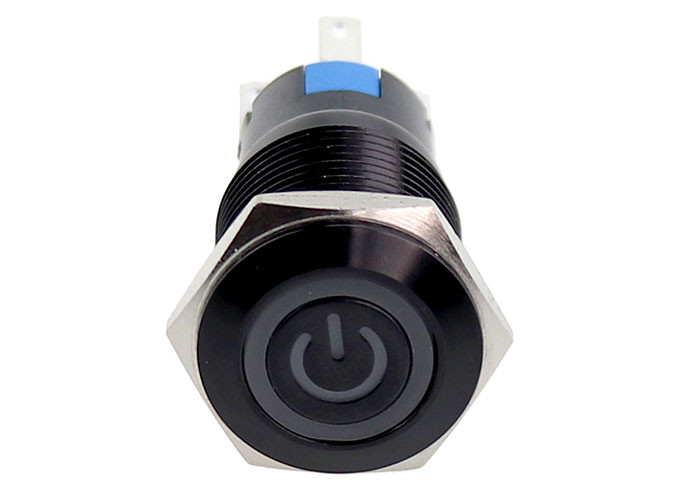

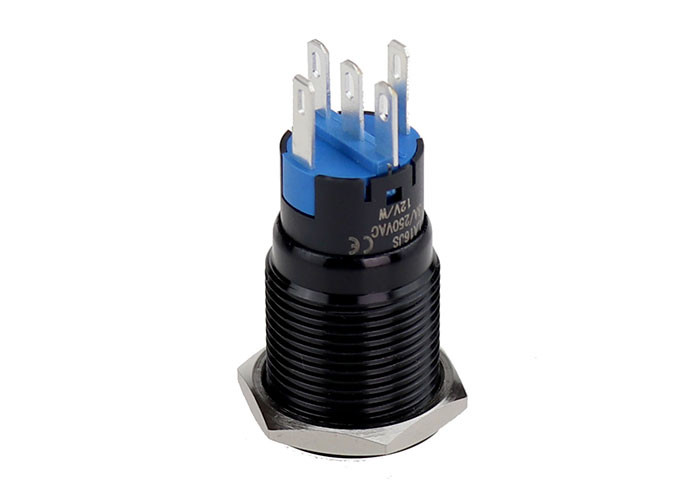

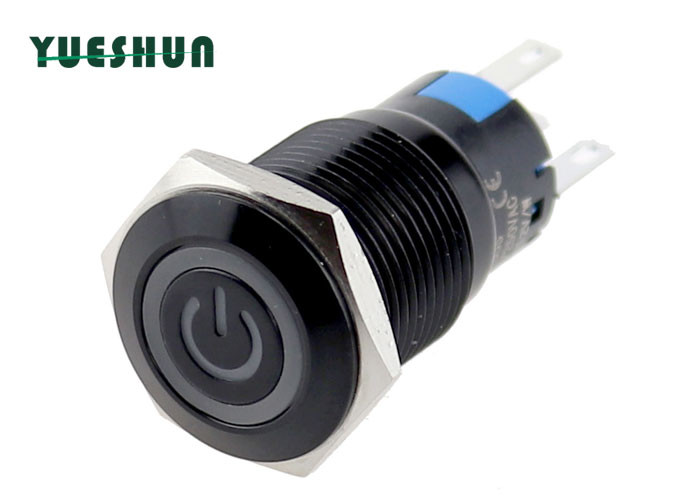

16mm Black aluminum Body Waterproof Anti Vandal Push Button Switch Angle eyes Symbol LED Power press switch
Product Description
- The anti vandal pushbutton switch is produced to withstand physical attack and is applied for any equipments that have requirements above panel resistance to water or dust access such as public kiosks, outside panels or open dashboards.
- There are two choice for Stainless steel: 316 or 304, better corrosiveness resistance and Oxidation resistance; Colors for Zn-Al Alloy: Black, Green, Yellow, Blue, Red. Two choice for Brass: Nickle plate brass or gold plated brass.
- 3a. Latching/Self-locking button: Press the power on, release the hand, and keep the button still (light on)； Press the button again to make it pop upand disconnect the power (light off)；b. Momentary button: Press the power on, release the hand power on of off, the button spring to original position.
Product Specification
| Model Number | LA16F-11EY/L |
| Mounting Hole | 16mm |
| Max.Switch Rating | Ith : 5A Ui : 250V AC |
| Material | Body Material : Aluminum |
| Button Material : Aluminum | |
| Contact Material : Silver Alloy | |
| Base Material : PBT | |
| The Front Shape | Flat Round Head |
| Terminal Type | Pin Termlmal( 2.8 * 0.5 MM ) |
| Switch Operation | Momentary or Latching are available |
| Contact Configuration | 1NO + 1NC or 2NO + 2NC |
| Mounting panel thickness | 1-10 mm |
| Operation Distance | About 2.8 mm |
| LED Parameters | Led Type : Power Ring Symbol |
| LED Color : Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing all Can be customized. |
|
| Led Voltage: 3V 6V 12V 24V 36V 110V 220V 360V for choose. |
|
| LED Life : More than 40,000 hours | |
| Protection Level | IP67 |
| Operating Temp |
-20℃～+55℃ |
