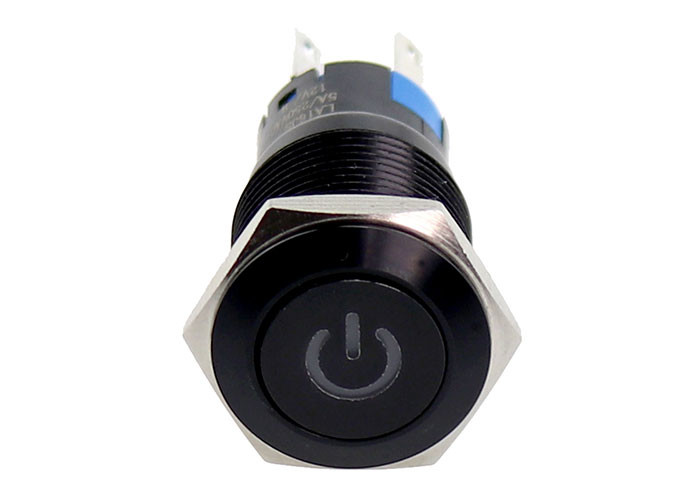

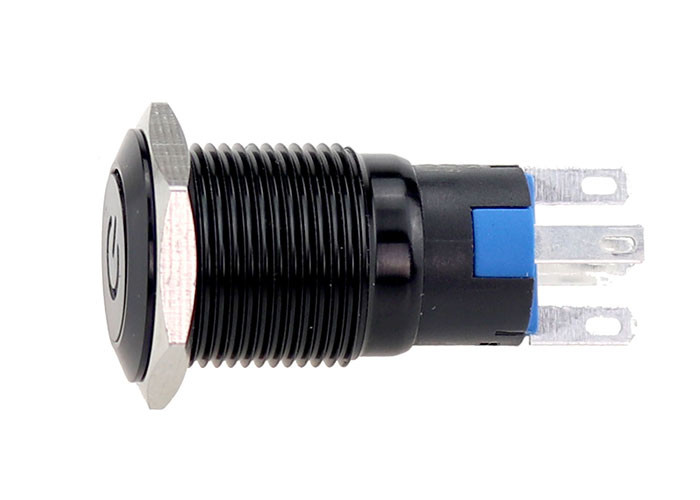

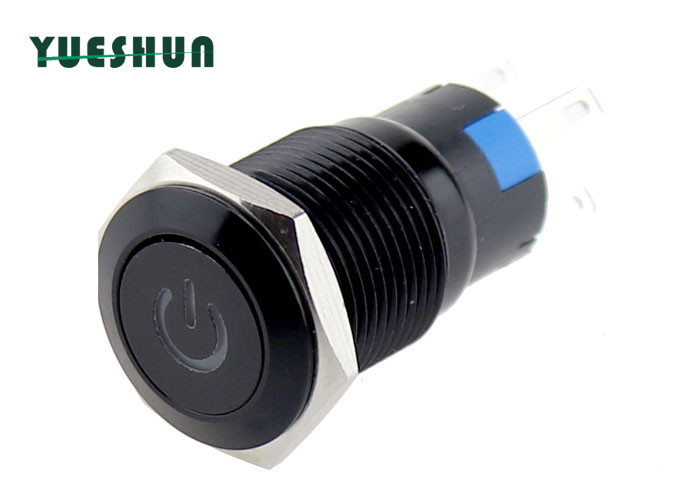

110v 220v Power Symbol LED 19mm Anti Vandal Push Button Switch 1NO 1NC Aluminum push button switch
Product Description
- There are many materials for your choice. Stainless steel is made to withstand rough use and the Brass is made to mirror effort. Zn-Al Alloy suppliy you whatever color you need.
- Our Push button switches can be used in different applications, including calculators, push button phones, and many home appliances. You can find them everywhere around you. They can turn device on and off, or cause the machine to perform specific actions.
- Latching/Self-locking Switch: Press the button switch, it works ; Press the button again ,switch stops working .
- Momentary Switch: Press the button switch, it works ; Press the button again ,switch stops working .
Product Specification
| Model Number | LA16F-11Y/L |
| Mounting Hole | 19mm |
| Max.Switch Rating | Ith : 5A Ui : 250V AC |
| Material | Body Material : Aluminum |
| Button Material : Aluminum | |
| Contact Material : Silver Alloy | |
| Base Material : PBT | |
| The Front Shape | Flat Round Head |
| Terminal Type | Pin Termlmal( 2.8 * 0.5 MM ) |
| Switch Operation | Momentary or Latching are available |
| Contact Configuration | 1NO + 1NC or 2NO + 2NC |
| Mounting panel thickness | 1-10 mm |
| Operation Distance | About 2.8 mm |
| LED Parameters | Led Type : Power Symbol |
| LED Color : Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing all Can be customized. |
|
| Led Voltage: 3V 6V 12V 24V 36V 110V 220V 360V for choose. |
|
| LED Life : More than 40,000 hours | |
| Protection Level | IP67 |
| Operating Temp |
-20℃～+55℃ |
