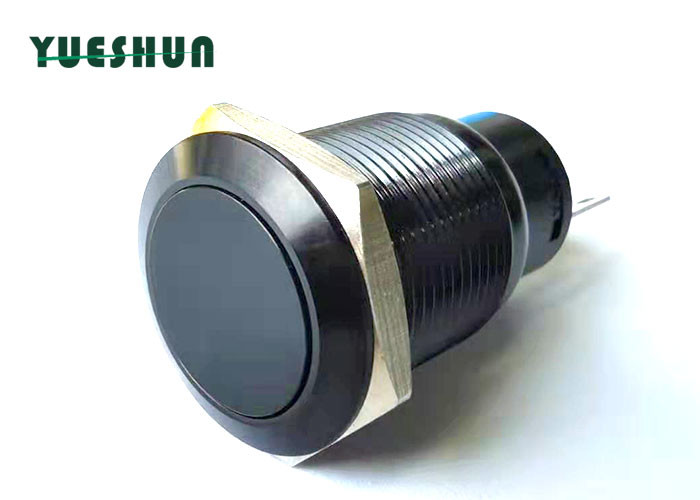

Aluminum Anti Vandal Push Button Switch , 19mm IP67 Push Button Switch

Aluminum Anti Vandal Push Button Switch , 19mm IP67 Push Button Switch
Features Gallery Product Description Request A Quote
Color: Black
Body Material: Oxidized Aluminum
Protection Level: IP67
Mechanical Life: More Than1,000,000 Cycles
Application: Universal
Contact Configuration: 1NO 1NC
High Light:

car horn push button switch


pc push button switch

Basic Infomation
Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: LA19F-11/L
Payment & Shipping Terms
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Product Description

Waterproof 19mm Aluminum Anti Vandal Push Button Switch 1NO 1NC Latching Momentary push button


Product Description

- We are Push button swithes supplier and we have been in this area for almost 10 years. Our engineers are improving the products all the time for better function , better appearance and better quality. Our factory welcome all the customer all over the world for OEM or ODM.
- Waterproof pushbutton switches is made of anti-vandal metal, such as stainless steel, Gold plated brass , Zn-Al Alloy, Nickel Plated Brass.
- Latching type power buttons : Push it–on, push it again-off;

- Momentary type power buttons: Push it- on, release - the actuator surface spring to original position.


Product Specification

  Model Number   LA19F-11/L
  Mounting Hole   19mm
  Max.Switch Rating   Ith : 5A Ui : 250V AC
  Material   Body Material: Aluminum
  Button Material: Aluminum
  Contact Material: Silver Alloy
  Base Material: PBT
  The Front Shape  Flat Round Head
  Terminal Type   Pin Termlmal ( 2.5 * 0.5 mm )
  Switch Operation   Momentary or Latching are available
  Contact Configuration   1NO + 1NC or 2NO + 2NC are available
  Mounting panel thickness   1-10 mm
  Operation Distance   About 3.1 mm
  Protection Level   IP67
  Operating Temp   -20℃~+55℃



Aluminum Anti Vandal Push Button Switch , 19mm IP67 Push Button Switch 0
