Anti Vandal Push Button Doorbell Switch 1NO Dustproof High Power Efficiency

Anti Vandal Push Button Doorbell Switch 1NO Dustproof High Power Efficiency
Features Gallery Product Description Request A Quote
Max. Current: 2A
Max. Voltage: 36V DC
Color: Silver
Body Material: Stainless Steel
Terminal Material: Silver Alloy
Panel Mounting: 16MM
High Light:

pc push button switch


push button doorbell switch

Basic Infomation
Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: JS16H-10/S
Payment & Shipping Terms
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Product Description

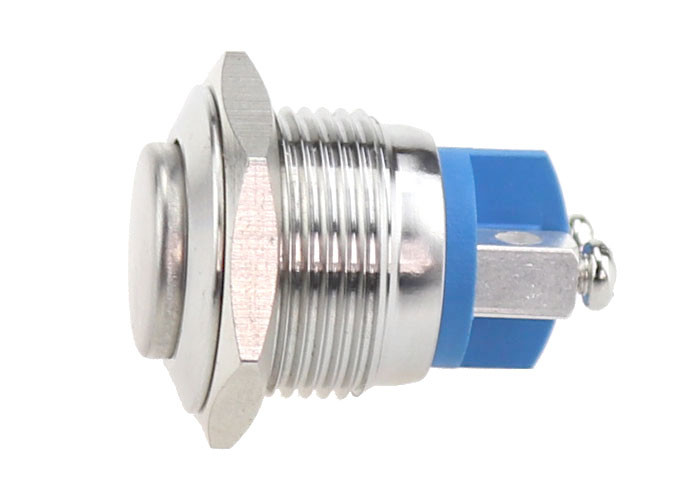

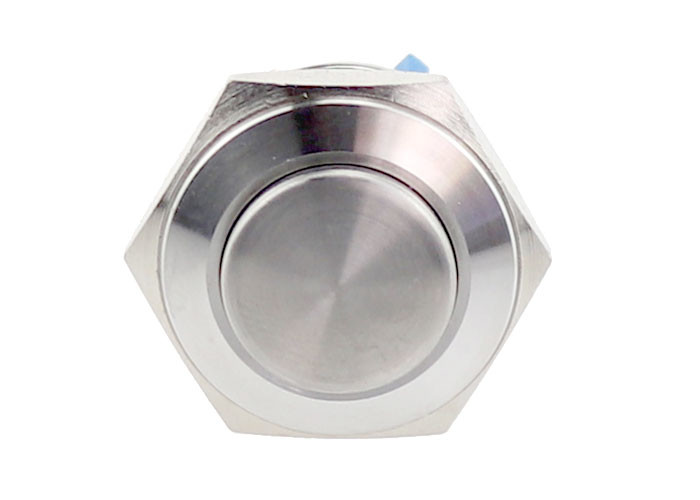

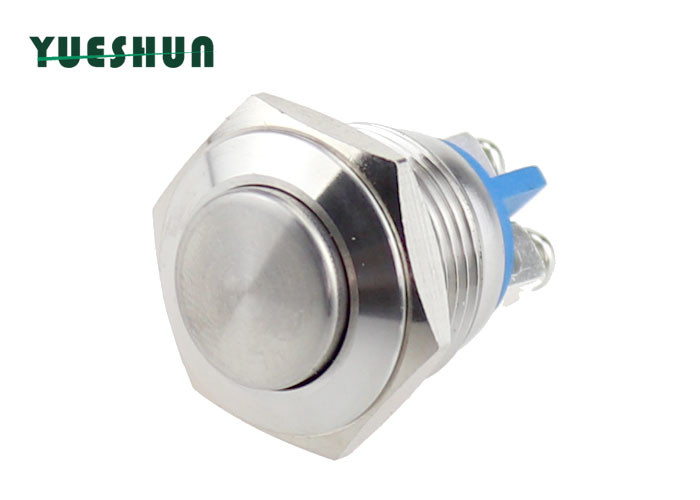

Momentary 16mm Anti Vandal Push Button Switch IP65 Waterproof 1NO Door Bell push button


Product Feature

- Momentary button: Press the power on, release the hand power on of off, the button spring to original position.
- Waterproof pushbutton switches is made of anti-vandal metal, such as stainless steel, Gold plated brass , Zn-Al Alloy, Nickel Plated Brass.
- Our buttons can be Used in Various Additional Electric Equipment, Reaply, Inside or Outside the Car or Any Circuit Controls. Anti-vandal push buttons are used for electronmagnetic Starter, relay, Horn Button Switch,Car modification, the host computer keys, buttons and instruction button appliances, PC Power Switch or any circuit controls.


Product Specification

  Model Number   JS16H-10/S
  Mounting Hole   16mm
  Max.Switch Rating   Ith:2A Ui:36V DC
  Material   Body Material: Stainless Steel
  Button Material: Stainless Steel
  Contact Material: Silver Alloy
  Base Material: PBT
  The Front Shape   High Round Head

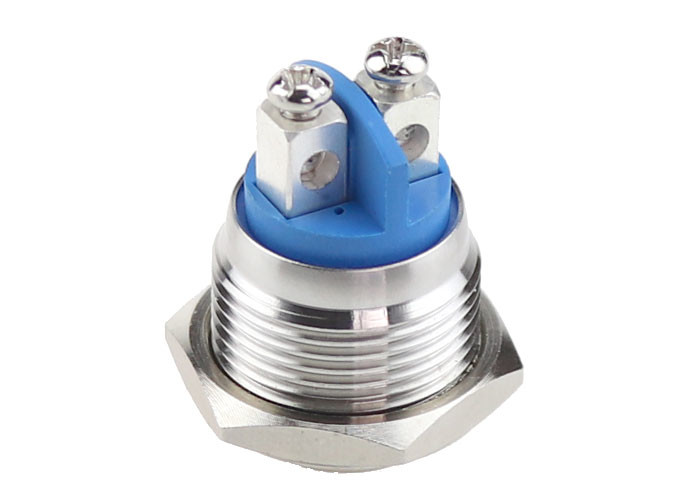

  Terminal Type   Screw Termlmal
  Switch Operation   Momentary
  Contact Configuration   Normal Open or Normal Closed all can be customized.
  Mounting panel thickness   1-6 mm
  Operation Distance   About 1.5 mm
  Protection Level   IP65
  Operating Temp   -20℃~+55℃
  Mechanical life:   More than1,000,000 cycles
  Electrical life:   More than 200,000 cycles
