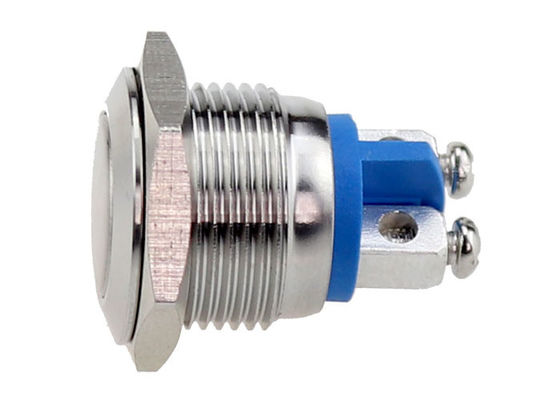

16mm Momentary Anti Vandal Push Button Switch Flat Round Head silver alloy Screw Termlmal
Product Feature
- The pushbutton switches are widly used in car motorcycle boat , car modified, computer appliance lamp switch, industrial control, access - control,etc.
- The product is made of stainless steel, which is durable and can be used in outdoor environment; Other materials such as Nickel Plated Brass, Gold plated brass, Zn-Al Alloy.
- Momentary type power buttons: Push it- on, release - the actuator surface spring to original position.
Product Specification
| Model Number | JS16F-10/S |
| Mounting Hole | 16mm |
| Max.Switch Rating | Ith:2A Ui:36V DC |
| Material | Body Material: Stainless Steel |
| Button Material: Stainless Steel | |
| Contact Material: Silver Alloy | |
| Base Material: PBT | |
| The Front Shape | Flat Round Head |
| Terminal Type | Screw Termlmal |
| Switch Operation | Momentary |
| Contact Configuration | Normal Open or Normal Closed all can be customized. |
| Mounting panel thickness | 1-6 mm |
| Operation Distance | About 1.5 mm |
| Protection Level | IP65 |
| Operating Temp | -20℃～+55℃ |
| Mechanical life: | More than1,000,000 cycles |
| Electrical life: | More than 200,000 cycles |
Size
