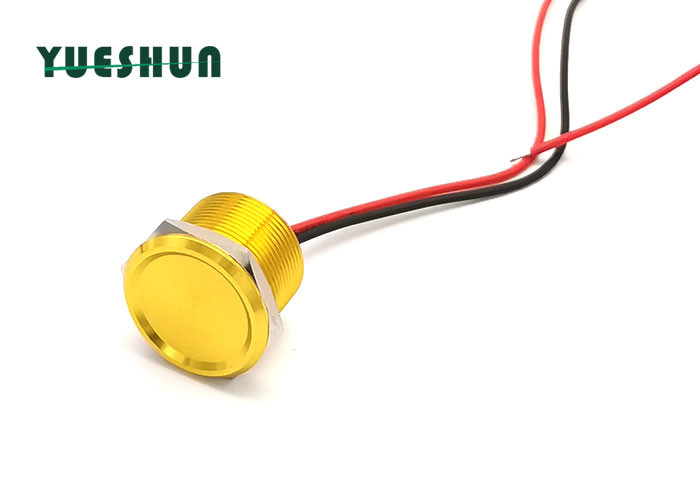

IP68 waterproof 22mm Yellow Piezo Touch Switch flat operator 1NO momentary with Fly Cable
FAQ
1 How wide can this button be installed on the mounting plate, and what is the diameter of the opening of the mounting plate?
- It can be mounted on a 1-10mm wide mounting plate.The opening diameter of the mounting plate is 22mm.
2 Can this product be used in very humid and hot environments?
- It can be used in an environment with humidity between 10% and 90% and operating temperature between -40 and -90 degrees Celsius.As long as it's in that range, it's not a big deal.
Product .Specification
|
Model Number |
YD22-10-Y |
|
Mounting Hole |
22mm |
|
Max.Switch Rating |
Ith : 100mA Ui : 24V DC |
|
Body Material |
Aluminum |
|
Body Color |
Yellow |
|
The Front Shape |
Flat Round Head |
|
Terminal Type |
0.22 Square wire (wire length can be customized) |
|
Switch Operation |
Momentary |
|
Pulse Time |
Less than or equal to 50ms |
|
Mounting panel thickness |
1-12 mm |
|
Protection Grade |
IP68 IEC529 |
|
Working Humidity |
10%-90% |
|
Operating Temp |
-40℃～+70℃ |
|
Working Pressure |
3~8N |
|
Operating life: |
More than 500,000 cycles |
Size
