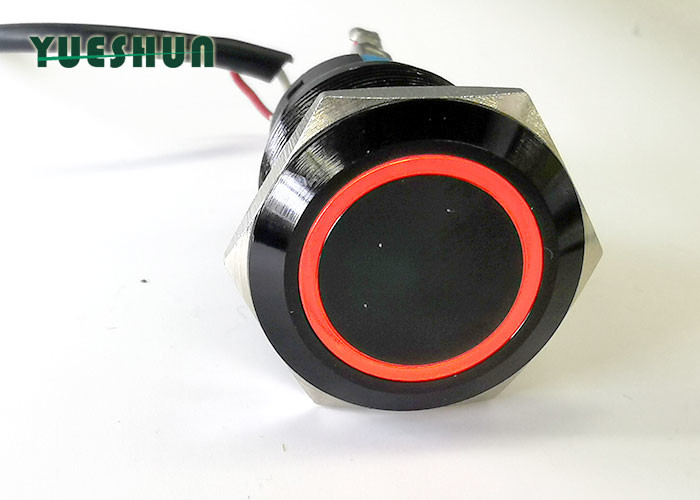

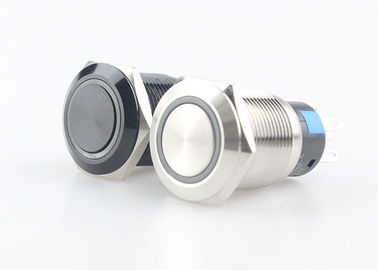

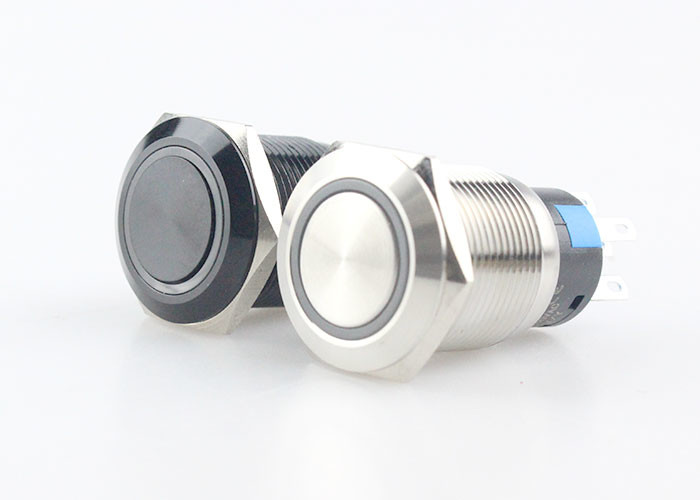

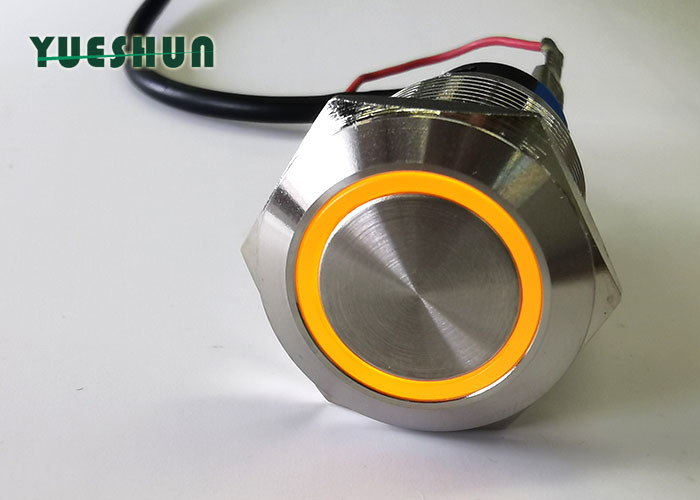

19mm Latching Momentary Push Button Switch LED Illuminated Ring TYPE Metal Push button light switch
Product Description
- Easy to Install, there's even a rubber gasket to keep water out of the enclosure. But they can not be submerged in the water.
- There are two choice for Stainless steel: 316 or 304, better corrosiveness resistance and Oxidation resistance; Colors for Zn-Al Alloy: Black, Green, Yellow, Blue, Red. Two choice for Brass: Nickle plate brass or gold plated brass.
- Push buttons are available with normally open or normally closed contacts that change state when the actuator is operated. Momentary switches require the user to keep holding the button for an action to take place, this action is then reset once the button is released. Latching push buttons keep the switch in the set contact state until the button is pressed again.
Product Attribute
| Mounting hole Diameter |
19mm | Mounting Panel Thickness |
1-10 mm |
| Max.Switch Rating | 5A / 250V AC | Protection Level | IP67 |
| Operation type |
Momentary Latching |
Contact Configuration |
1NO + 1NC 2NO + 2NC |
| Body Material |
Stainless steel Oxidized Aluminum |
Operation Distance | About 3.1 mm |
| LED | LED Color | Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing Can be customized. | |
| Led Voltage | 3V 6V 12V 24V 36V 110V 220V are available. | ||
| LED Type | Ring Symbol | ||
Size
