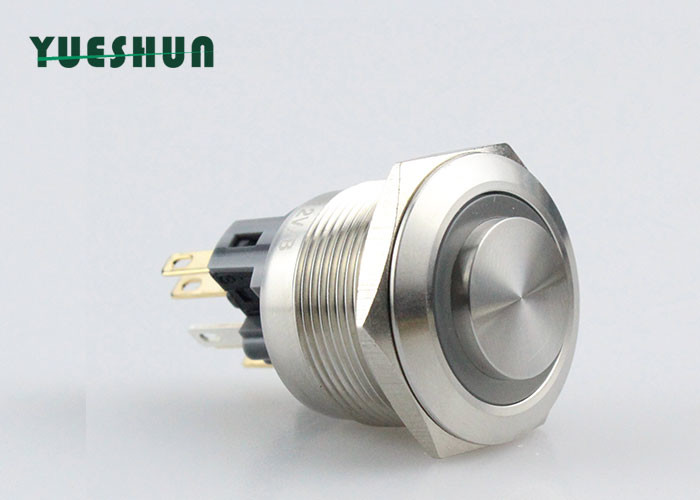

IP67 22mm 2NO 2NC 8 Pin Terminal Momentary Power Switch

Negotiable
MOQ
Negotiable
Price
IP67  22mm 2NO 2NC 8 Pin Terminal Momentary Power Switch
Features Gallery Product Description Request A Quote
Features
Specifications
Max. Voltage: 250V AC
Max. Current: 5A
Application: Universal
Contact Configuration: 1NO 1NC OR 2NO 2NC
Weigh: 30g
Terminal Type: Pin Termlmal
High Light:

8 Pin momentary power switch

,

2NO 2NC momentary power switch

,

CE 22mm momentary push button switch

Basic Infomation
Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: JS22F-11
Payment & Shipping Terms
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Product Description

22mm Metal IP67 Momentary Push Button Switch 2NO 2NC 8 Pin Termlmal electrical equipment switches



Product Description



- This is Metal push button,which is durable for longstanding press, not easily damaged. You can ask for the fllowing materials: stainless steel, Gold plated brass , Nickel Plated Brass, Zn-Al Alloy.
- Stainless steel and waterproof pushbutton switches are the best choice for outdoor machinery, various additional electric machinery. The pushbutton is outstanding in materials and long life.
- Each of our products is equipped with waterproof type 0 rubber ring, which is waterproof, but can not be used in water.Otherwise, the product will not work properly soon.



Product Specification



  Model Number   JS22F-11
  Mounting Hole   22mm
  Max.Switch Rating   Ith : 5A Ui : 250V AC
  Material

  Body Material:

  Stainless Steel or Nickel Plated Brass or Black Oxidized Aluminum

  Button Material:

  Stainless Steel or Nickel Plated Brass or Black Oxidized Aluminum

  Contact Material: Silver Alloy
  Base Material: PBT
  The Front Shape   Flat Round Head
  Terminal Type   Pin Termlmal
  Switch Operation   Momentary
  Contact Configuration   1NO
  Mounting panel thickness   1-8 mm
  Operation Distance   About 0.5 mm
  Protection Level   IP65
  Operating Temp   -20℃~+55℃
