Surface Mount 16mm DPDT 1NO1NC Led Push Button Switch

Negotiable
MOQ
Negotiable
Price
Surface Mount 16mm DPDT 1NO1NC Led Push Button Switch
Features Gallery Product Description Request A Quote
Features
Specifications
LED Color: Red,Green,Yellow,Orange,Blue,White,Purple Or Double Color Mixing Can Be Customized.
Led Voltage: 3V 6V 12V 24V 36V 110V 220V 360V
Max. Current: 5A
Max. Voltage: 250V AC
Application: Universal
Contact Configuration: 1NO 1NC
High Light:

1NO1NC led push button switch

,

1NO1NC surface mount momentary switch

,

DPDT led push button switch

Basic Infomation
Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: LA16F-11D/S
Payment & Shipping Terms
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Product Description

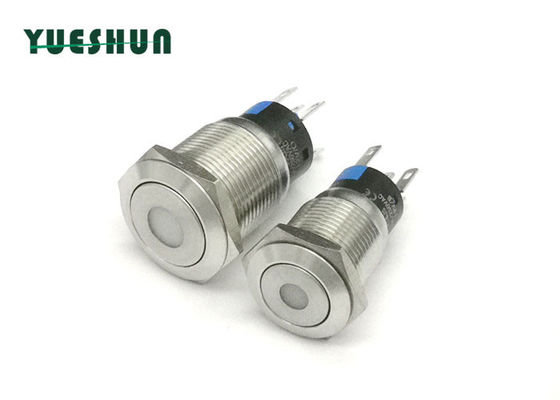

16mm illuminated Metal Panel Mount Push Button Switch 110v 220v Dot type LED Push Button Reset Switch



Product Fatures

- Real color may slightly different from pictures due to many factors such as computer screen's resolution, brightness, contrast etc. Hope understanding.
- Latching switch, push it down, it stays down and latched in the closed position, press the button again and it releases and unlatched;b. Momentary switches are switches which only remain in their on state as long as they’re being actuated (pressed, held, etc.).
- The product is made of stainless steel, which is durable and can be used in outdoor environment; Other materials such as Nickel Plated Brass, Gold plated brass, Zn-Al Alloy.



Product Specification



Product name Metal power symbol 4 pin 12mm mechanical push button
Mounting hole 8mm,10mm,12mm,16mm,19mm,22mm,25mm,28mm,30mm,40mm
Protection Level IP67 IP65
Operation type Momentary or latching
Switch Combination 1no1nc,2no2nc,1no,1nc
Illuminated or not Illuminated or non-illuminated
Led voltage 2v,3v,5v,6v,12v,24v,36v,110v,220v etc.
Led color Red,yellow,blue,green,white,bi-color,tri-color
Illuminated type Ring led,dot led
Material Stainless steel,brass nickel plated,aluminum alloy
Head type Flat round head,high flat round head,dome head ,power symbol head
Terminal type Terminal PINS,SCREW terminal
Delivery date 3-7 work days
Certificate CE
Customized OEM is welcome
Feature Waterproof





1. Quality guaranteed: Special supervision team control quality.

2. After service guaranteed: Assure you the best services at all times.

3. Delivery time: Your shipment will be loaded in 10-30 days,depends on quantity.

4. Payment terms: T/T,PayPal,Credit card

5. OEM & ODM are available.
