Self Locking Metal LED Push Button Switch Durable Normal Open Normal Chosed

Negotiable
MOQ
Negotiable
Price
Self Locking Metal LED Push Button Switch Durable Normal Open Normal Chosed
Features Gallery Product Description Request A Quote
Features
Specifications
Led Type: Ring Symbol
LED Life: More Than 40,000 Hours
Terminal Material: Silver Alloy
Panel Mounting: 16mm
Application: Universal
Contact Configuration: Normal Open Normal Chosed
High Light:

rugged metal pushbutton

,

metal led push button switch

Basic Infomation
Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: LA16H-11E/S
Payment & Shipping Terms
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Product Description

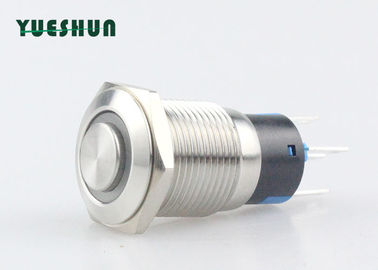

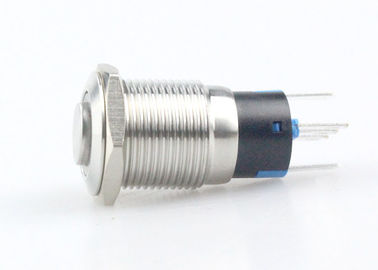

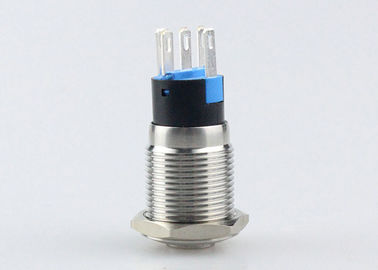

16mm High Head Momentary Self-locking Metal Push Button Switch Ring Type LED illuminated push button switch



Product Description

- Our buttons can be Used in Various Additional Electric Equipment, Reaply, Inside or Outside the Car or Any Circuit Controls. Anti-vandal push buttons are used for electronmagnetic Starter, relay, Horn Button Switch,Car modification, the host computer keys, buttons and instruction button appliances, PC Power Switch or any circuit controls.
- Latching type power buttons : Push it–on, push it again-off;

- Momentary type power buttons: Push it- on, release - the actuator surface spring to original position.
- LED color: 1. Red 2. Green 3. Blue 4. Yellow 5. Orange 6. White 7. Purple
- LED voltage: 3V 6V 12V 24V 36V 110V 220V 380V for choose



Product Specification

  Model Number   LA16H-11E/S
  Mounting Hole   16mm
  Max.Switch Rating   Ith : 5A Ui : 250V AC
  Material   Body Material : Stainless Steel
  Button Material :Stainless Steel
  Contact Material : Silver Alloy
  Base Material : PBT
  The Front Shape   High Round Head
  Terminal Type   Pin Termlmal( 2.8 * 0.5 MM )
  Switch Operation   Momentary or Latching are available
  Contact Configuration   1NO + 1NC or 2NO + 2NC
  Mounting panel thickness   1-10 mm
  Operation Distance   About 2.8 mm
  LED Parameters   Led Type : Ring Symbol
  LED Color :
  Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing all Can be customized.
  Led Voltage:
3V 6V 12V 24V 36V 110V 220V 360V for choose.
  LED Life : More than 40,000 hours
  Protection Level   IP67
  Operating Temp

  -20℃~+55℃



Size Drawing

Self Locking Metal LED Push Button Switch Durable Normal Open Normal Chosed 0
