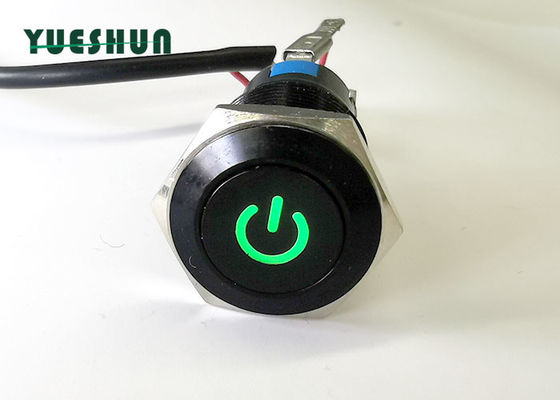

Stainless Steel Push Button Switch LED Illuminated Power Type Long Service Life

Negotiable
MOQ
Negotiable
Price
Stainless Steel Push Button Switch LED Illuminated Power Type Long Service Life
Features Gallery Product Description Request A Quote
Features
Specifications
Led Type: Power Symbol
LED Life: More Than 40,000 Hours
Color: Black Or Silver
Body Material: Stainless Steel Or Oxidized Aluminum
Application: Universal
Contact Configuration: 1NO 1NC Or 2NO 2NC
High Light:

miniature illuminated push button switch

,

led light push button switch

Basic Infomation
Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: LA16F-11Y/S
Payment & Shipping Terms
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Product Description

16mm stainless steel Push Button Switch LED Illuminated Power Type illuminated car switches



Product Description

- Real color may slightly different from pictures due to many factors such as computer screen's resolution, brightness, contrast etc. Hope understanding.
- This is Metal push button,which is durable for longstanding press, not easily damaged. You can ask for the fllowing materials: stainless steel, Gold plated brass , Nickel Plated Brass, Zn-Al Alloy.
- Yueshun push button switches brings you a wide range of high-quality and high cost performance. Our products has been rigorously tested against demanding industry standard. You can trust us.



Product Attribute



Mounting hole
Diameter
16mm Mounting Panel
Thickness
1-10 mm
Max.Switch Rating 5A / 250V AC Protection Level IP67
Operation type

Momentary

Latching

Contact
Configuration
1NO + 1NC
2NO + 2NC
Body Material

Stainless steel

Oxidized Aluminum

Operation Distance About 2.8 mm
LED LED Color Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing Can be customized.
Led Voltage 3V 6V 12V 24V 36V 110V 220V are available.
LED Life More than 40,000 hours
