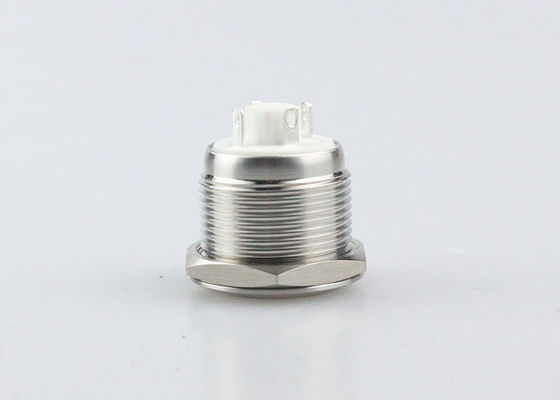

Ring LED 12 Volt Push Button Starter Switch 19mm Mounting Hole Easy Installation

Negotiable
MOQ
Negotiable
Price
Ring LED 12 Volt Push Button Starter Switch 19mm Mounting Hole Easy Installation
Features Gallery Product Description Request A Quote
Features
Specifications
LED Color: Red,Green,Yellow,Orange,Blue,White,Purple Or Double Color Mixing Can Be Customized.
Led Voltage: 3V 6V 12V 24V 36V 110V 220V 360V
Color: Silver
Body Material: Stainless Steel
Weigh: 30g
Terminal Type: Pin Termlmal
High Light:

push button reset switch

,

led push button on off switch

Basic Infomation
Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: JS19F-10E
Payment & Shipping Terms
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Product Description

12 volt Ring LED illuminated 19mm Panel Mount Push Button Switch Metal Momentary push button starter switch



Product Fatures

- Enclosure Material: Stainless Steel;High quality metal material & IP65 waterproof protection can be used in wet or dusty enviroment.
- Momentary Switch: Press the button switch, it works ; Press the button again ,switch stops working .
- IP Degree: IP67, IK08. Waterproof Protection Can be Used in Wet or Dusty Environment. 6 means Totally protected against dust,7 means Protected against the effects of temporary immersion between 15cm and 1m.



Product Specification



 Model Number

JS19F-10E/S

Mounting Hole

19mm

Max.Switch Rating

Ith : 3A Ui :250V AC

Material

Body Material: Stainless Steel

Button Material: Stainless Steel

Contact Material: Silver Alloy

Base Material: PBT

The Front Shape

Flat Round Head

Terminal Type

Pin Termlmal ( 2.0 * 0.5 mm)

Switch Operation

Momentary

Contact Configuration

1NO

Mounting Panel Thickness

1-9 mm

Operation Distance

About 2.0mm

LED Parameters

Led Type: Ring Type

LED Color:
Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing Can be customized.

Led Voltage:

3V 6V 12V 24V are available.

LED Life: More than 40,000 hours

Protection Level

IP67

Operating Temp

-20℃~+55℃



Size

Ring LED 12 Volt Push Button Starter Switch 19mm Mounting Hole Easy Installation 0
