16mm Panel Mount Push Button Switch round push button light switch
Features Gallery Product Description Request A Quote
Features
Specifications
LED Color: Red,Green,Yellow,Orange,Blue,White,Purple Or Double Color Mixing Can Be Customized.
Led Voltage: 3V 6V 12V 24V 36V 110V 220V 360V
Max. Current: 5A
Max. Voltage: 250V AC
Weigh: 30g
Terminal Type: Pin Termlmal
High Light:

led push button on off switch

,

round push button light switch

Basic Infomation
Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: LA16F-11D/L
Payment & Shipping Terms
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Product Description

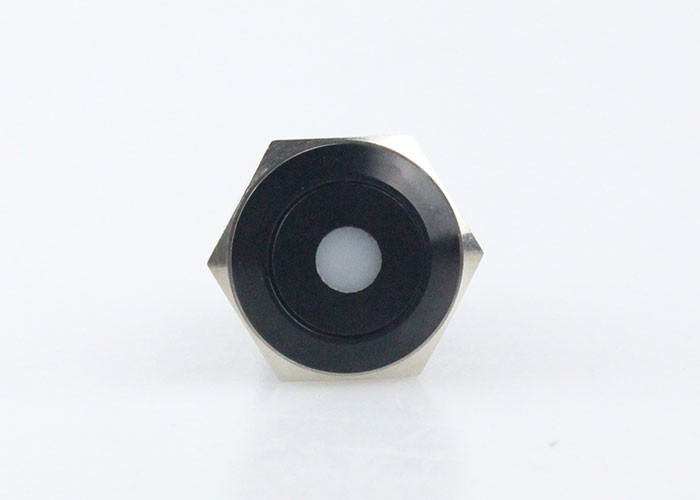

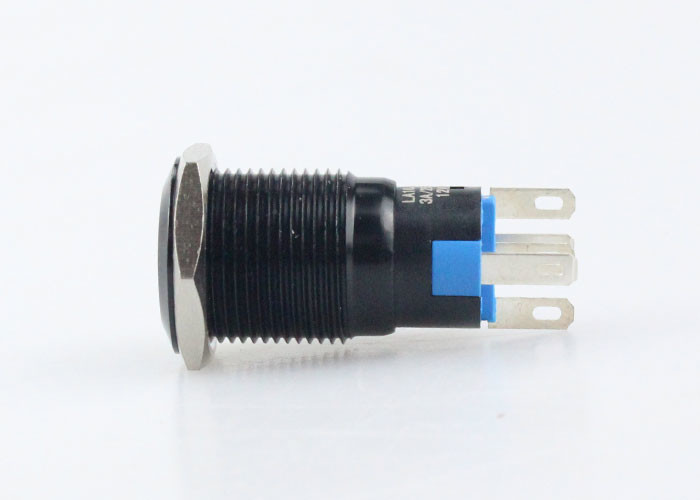

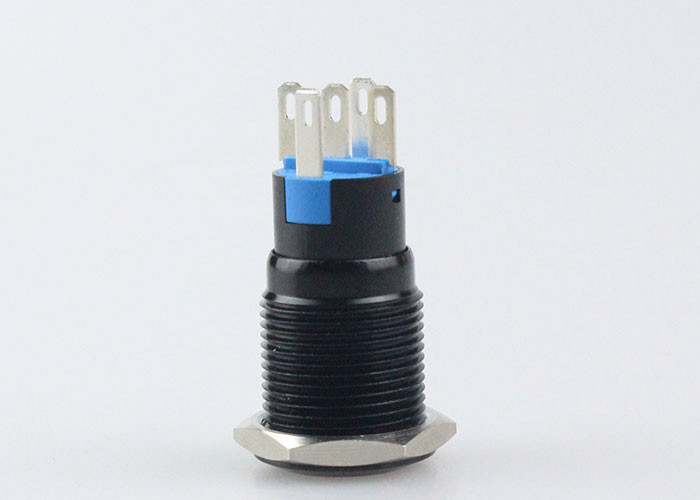

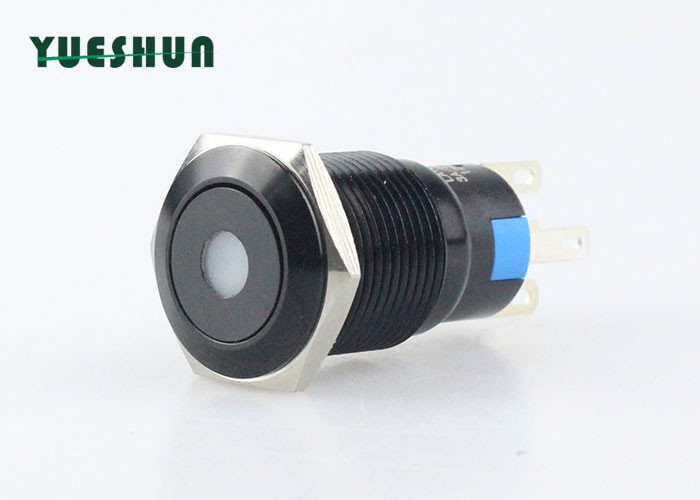

16mm Black Oxidized Aluminuml Panel Mount Push Button Switch Dot type LED Latching Push Button Switch



Product Fatures

- This is Metal push button,which is durable for longstanding press, not easily damaged. You can ask for the fllowing materials: stainless steel, Gold plated brass , Nickel Plated Brass, Zn-Al Alloy.
- Latching type power buttons : Push it–on, push it again-off;

- Momentary type power buttons: Push it- on, release - the actuator surface spring to original position.
- The color may have different as the difference display, pls understand.



Product Specification



 Model Number

LA16F-11D/L

Mounting Hole

16mm

Max.Switch Rating

Ith : 5A Ui : 250V AC

Material

Body Material: Black Oxidized Aluminum

Button Material: Black Oxidized Aluminum

Contact Material: Silver Alloy

Base Material: PBT

The Front Shape

Flat Round Head

Terminal Type

Pin Termlmal ( 2.8 * 0.5 MM )

Switch Operation

Momentary or Latching are available

Contact Configuration

1NO + 1NC or 2NO + 2NC

Mounting Panel Thickness

1-10 mm

Operation Distance

About 2.8 mm

LED Parameters

Led Type: Dot

LED Color:
Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing Can be customized.

Led Voltage:

3V 6V 12V 24V 36V 110V 220V 360V are available.

LED Life: More than 40,000 hours

Protection Level

IP67

Operating Temp

-20℃~+55℃
