IP65 Panel Mount Push Button Switch , Momentary Push Button Switch Normally Open

Negotiable
MOQ
Negotiable
Price
IP65 Panel Mount Push Button Switch , Momentary Push Button Switch Normally Open
Features Gallery Product Description Request A Quote
Features
Specifications
Color: Black And Other Color
Body Material: Aluminum
Protection Level: IP65
Mechanical Life: More Than1,000,000 Cycles
Head Shape: Ball Round Head
Warranty Period: Two Year
High Light:

led push button on off switch

,

round push button light switch
Basic Infomation
Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: JS12B-10J/S
Payment & Shipping Terms
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Product Description

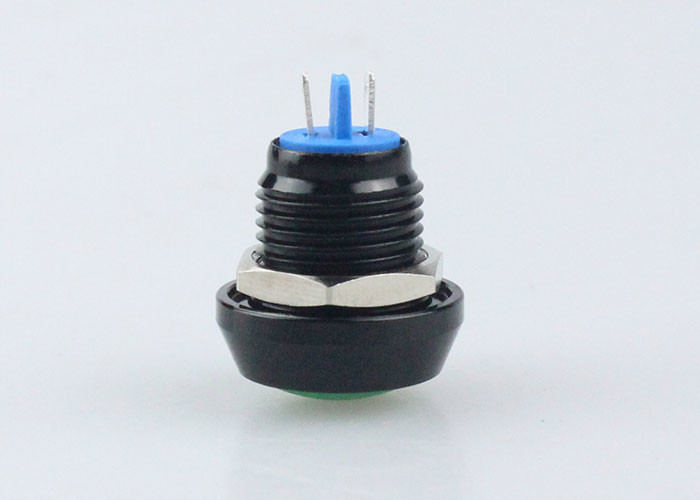

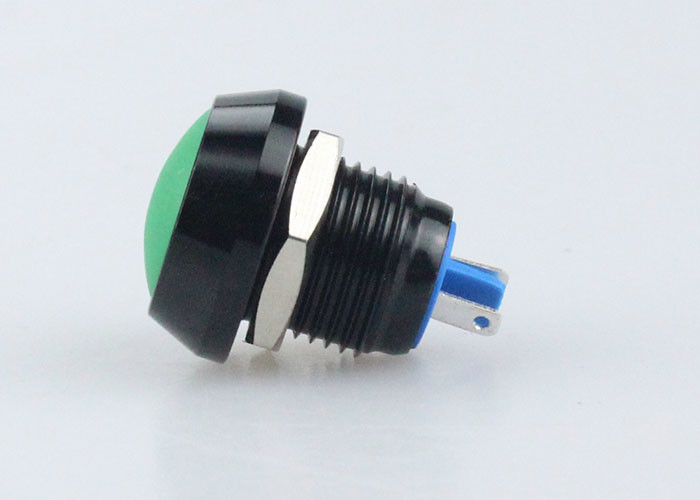

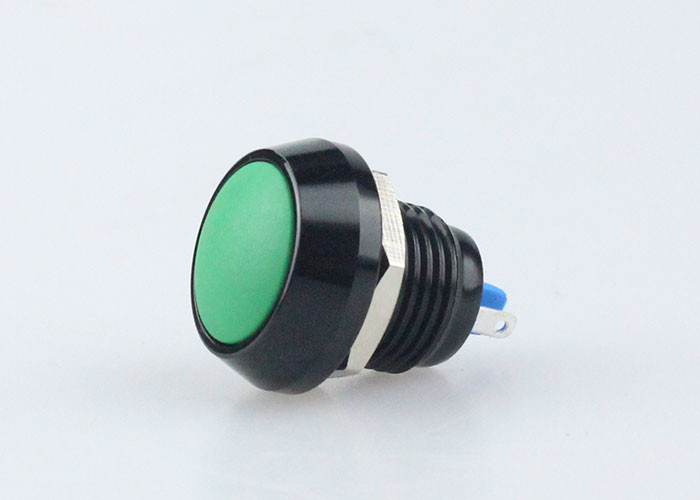

Pin Termlmal 12mm Metal Panel Mount Push Button Switch Momentary aluminum button 1NO Yellow Head



Product Feature

- The Momentary pushbutton swithes are High-grade appearance and nice touch feeling, which is made of 304 stainless steel. If you need other materials please feel free to contact us.
- Momentary type power buttons: Push it- on, release - the actuator surface spring to original position.

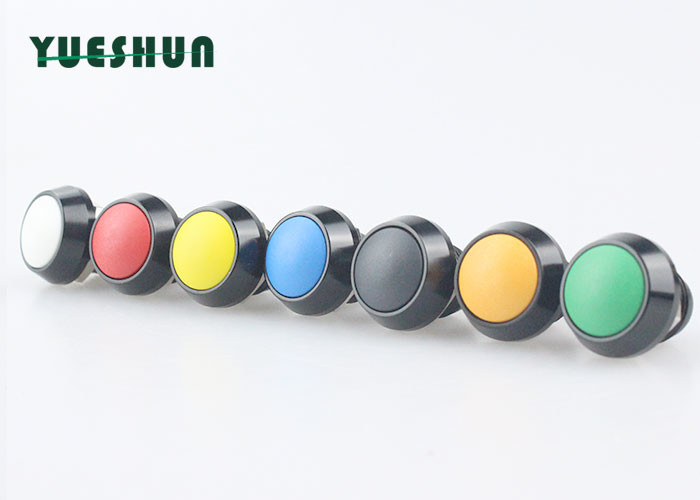

- Outside color: 1. Stainless steel 2. Nickle plated brass  3 Aluminum.



Product Specification

  Model Number   JS12B-10J/L
  Mounting Hole   12mm
  Max.Switch Rating   Ith : 2A Ui : 36V DC
  Material   Body Material: Aluminum
  Button Material: PBT
  Contact Material: Silver Alloy
  Base Material: PBT
  The Front Shape   Ball Round Head
  Terminal Type   Pin Termlmal
  Switch Operation   Momentary
  Contact Configuration   Normal Open ( 1NO )
  Mounting panel thickness   1-6 mm
  Operation Distance   About 2.5 mm
  Protection Level   IP65
  Operating Temp   -20℃～+55℃



Size

IP65 Panel Mount Push Button Switch , Momentary Push Button Switch Normally Open 0
