Normally Open Panel Mount Push Button Switch , Self Reset Push Button Switch

Negotiable
MOQ
Negotiable
Price
Normally Open Panel Mount Push Button Switch , Self Reset Push Button Switch
Features Gallery Product Description Request A Quote
Features
Specifications
Max. Current: 2A
Max. Voltage: 36V DC
Protection Level: IP65
Mechanical Life: More Than1,000,000 Cycles
Terminal Material: Silver Alloy
Panel Mounting: 12mm
High Light:

push button reset switch

,

round push button light switch

Basic Infomation
Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: JS12B-10J/S
Payment & Shipping Terms
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Product Description

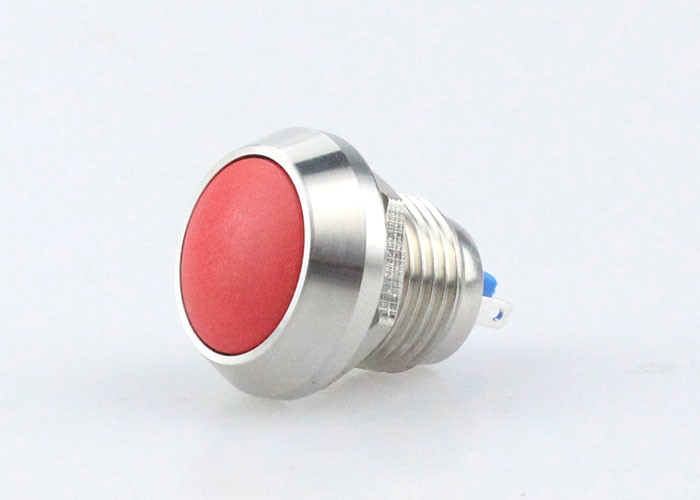

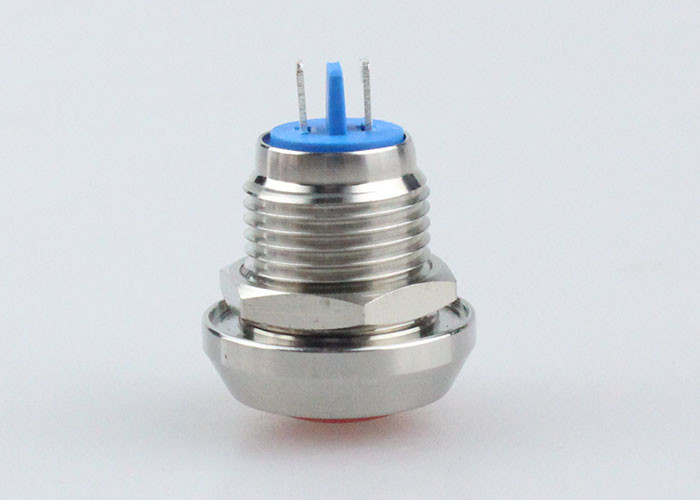

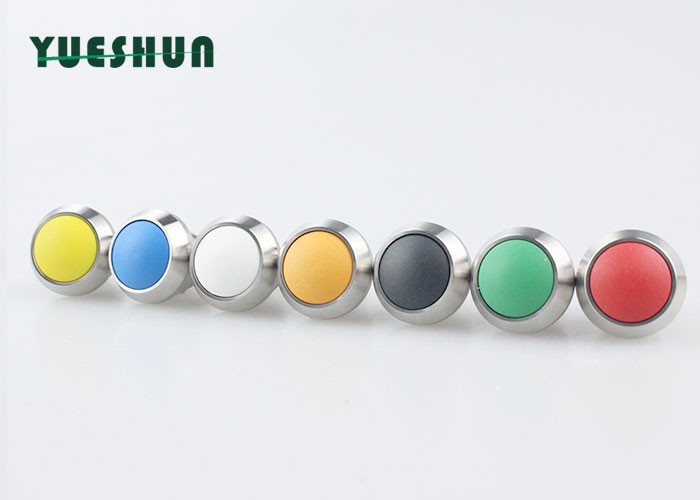

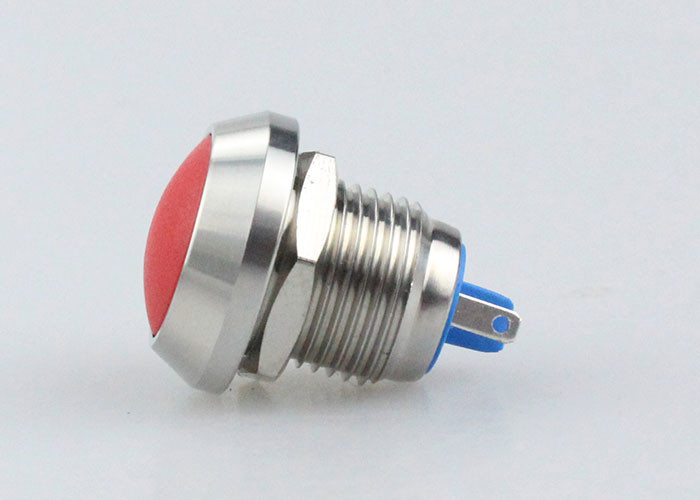

12mm Metal 1NO Panel Mount Push Button Switch Ball round Head Pin Termlmal self reset switch



Product Feature

- This is Metal push button,which is durable for longstanding press, not easily damaged. You can ask for the fllowing materials: stainless steel, Gold plated brass , Nickel Plated Brass, Zn-Al Alloy.
- Momentary button: Press the power on, release the hand power on of off, the button spring to original position.
- IP Degree: Most of our products are IP67, some of them IP65, 6 means Totally protected against dust,7 means Protected against the effects of temporary immersion between 15cm and 1m. Duration of test 30 minutes, 5 means Protected against low pressure jets if water from all directions - limited ingress permitted.



Product Specification

  Model Number   JS12B-10J/S
  Mounting Hole   12mm
  Max.Switch Rating   Ith : 2A Ui : 36V DC
  Material   Body Material: Stainless Steel
  Button Material: PBT
  Contact Material: Silver Alloy
  Base Material: PBT
  The Front Shape   Ball Round Head
  Terminal Type   Pin Termlmal
  Switch Operation   Momentary
  Contact Configuration   Normal Open ( 1NO )
  Mounting panel thickness   1-6 mm
  Operation Distance   About 2.5 mm
  Protection Level   IP65
  Operating Temp   -20℃~+55℃



Size

Normally Open Panel Mount Push Button Switch , Self Reset Push Button Switch 0
